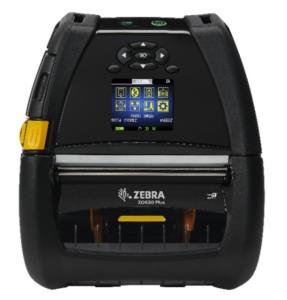

Zq630 Plus - Mobile Printer - Direct Thermal - 112mm - Mini USB / Bluetooth / Wi-Fi With Shoulder Strap And Battery 6600mah

Introduction

The ZQ630 Plus premium mobile printer offers the fastest, most dependable wireless connections inside the four walls - with support for 802.11ax Wi-Fi 6 and Bluetooth 5.

While the ZQ630 Plus is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design.

Printing

Print technology

Direct thermal

Colour

No

Maximum resolution

203 x 203 DPI

Print speed

115 mm/sec

Maximum printing width

10.4 cm

Minimum print length

1.27 cm

Vertical printing

Yes

Paper handling

Maximum label width

10.4 cm

Maximum roll diameter

6.6 cm

Media thickness

2.3, 5.5, 6.5 mm

Ports & interfaces

Connectivity technology

Wired & Wireless

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

USB port

Yes

Performance

Page description languages

CPCL-native, EPL, ZBI, ZPL

Internal memory

256 MB

Flash memory

512 MB

Built-in barcodes

2D, AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E

Built-in processor

Yes

Number of fonts

26

Security algorithms

802.1x RADIUS, AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2

Certification

FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5, CE, TUV, CSA, Made for iPod/iPhone/iPad

Design

Product colour

Black

Built-in display

Yes

Display

LCD

Display resolution

288 x 240 pixels

Colour display

Yes

Power

Battery type

Built-in battery

Number of batteries supported

1

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

6600 mAh

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-25 - 65 °C

Weight & dimensions

Width

165.1 mm

Depth

186.7 mm

Height

82.5 mm

Weight

1.1 kg
