Introduction

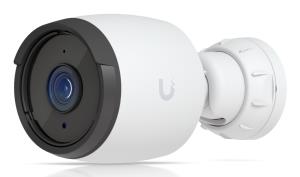

All-weather 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPs AI Engine, and long-range IR night vision.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Infrared (IR) cut-off filter
Yes
Processor model
ARM Cortex-A53
Built-in processor
Yes
Design
Form factor
Bullet
Mounting type
Ceiling/Wall/Pole
Product colour
White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IP66
IK code
IK04
Weatherproof
Yes
Camera
Lens viewing angle, horizontal
109.9°
Lens viewing angle, vertical
56.7°
Lens viewing angle, diagonal
134.1°
Image sensor
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Night vision
Night vision
Yes
Night vision distance
30 m
LED type
IR
Video
Maximum resolution
3840 x 2160 pixels
Total megapixels
8 MP
Frame rate
30 fps
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Image quality adjustment
Brightness, Contrast, HDR, Sharpness
Text caption overlay
Yes
Audio
Built-in microphone
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Wi-Fi
No
Bluetooth
No
Storage
Built-in HDD
No
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Human and vehicle targets classification
Yes
Management features
Reset button
Yes
Power
Power source type
PoE
Power consumption (max)
9.9 W
DC output voltage
37, 42.5, 48, 54, 57
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Height
88.8 mm
Diameter
8.2 cm
Weight
587 g
Sustainability
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging content
Number of cameras
1
Mounting kit
Yes
Screws included
Yes
Manual
Yes
