Introduction

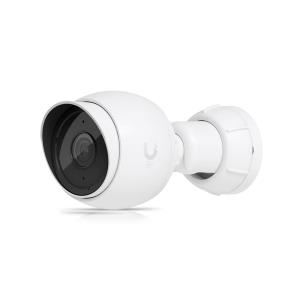

Camera G5 Bullet
Next-gen indoor/outdoor 2K HD PoE Camera.
Performance
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Processor model
ARM Cortex-A7
Built-in processor
Y
Infrared (IR) cut-off filter
Y
Design
Form factor
Bullet
Mounting type
Wall/Pole
Product colour
Black, White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IPX4
IK code
IK04
Camera
Lens viewing angle, horizontal
84.4°
Lens viewing angle, vertical
45.4°
Lens viewing angle, diagonal
99.8°
Image sensor
Sensor type
CMOS
Lens system
Number of lenses
1
Night vision
Night vision
Y
LED type
IR
Video
Maximum resolution
2688 x 1512 pixels
Total megapixels
5 MP
Video compression formats
H.264, M-JPEG
Supported graphics resolutions
2688 x 1512
Supported video modes
1512p
Frame rate
30 fps
Noise reduction
Y
Noise reduction technology
2D noise reduction, 3D noise reduction
Image quality adjustment
Brightness, Contrast, Sharpness
Privacy masking
Y
Text caption overlay
Y
Audio
Built-in microphone
Y
Network
Ethernet LAN
Y
Ethernet interface type
10 Gigabit Ethernet, 100 Gigabit Ethernet
Wi-Fi
N
Bluetooth
N
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Management features
Reset button
Y
Management software
UniFi Protect
Power
Power source type
PoE
Power consumption (max)
4 W
DC output voltage
57
Operational conditions
Operating temperature (T-T)
-20 - 40 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Diameter
7.55 cm
Length
74.4 mm
Weight
225 g
Packaging content
Number of cameras
1
Technical details
Sustainability compliance
Y
Sustainability certificates
CE, Federal Communications Commission (FCC)
