Introduction

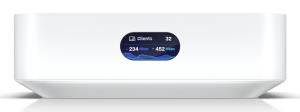

Powerfully compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.
WAN connection
Ethernet WAN
Yes
DSL WAN
No
SIM card slot
No
3G/4G USB modem compatibility
No
WAN connection type
RJ-45
Wireless LAN features
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network
Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum Tx power (2.4 GHz)
22 dBmW
Maximum Tx power (5 GHz)
25 dBmW
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
USB port
Yes
USB charging port
Yes
Management features
Quality of Service (QoS) support
Yes
Reset button
Yes
MU-MIMO technology
Yes
MIMO
Yes
Number of data streams
2x2
Security
Security algorithms
IPSec, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Guest access
Yes
Design
Product colour
White
Housing material
Polycarbonate (PC)
Built-in display
Yes
Product type
Tabletop router
Packaging content
Cables included
LAN (RJ-45)
AC adapter included
Yes
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC)
Antenna
Antenna design
Internal
Antenna type
2x2
Antenna gain level (max)
5.15 dBi
Antennas quantity
3
Features
Number of simultaneously connected devices (max)
60
Plug and Play
Yes
Bluetooth
Yes
Power
Power source type
AC, DC
Output voltage
5 V
Output current
3 A
Power consumption (typical)
10 W
Operational conditions
Operating temperature (T-T)
-10 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
98 mm
Depth
98 mm
Height
30 mm
Weight
302 g
