Introduction

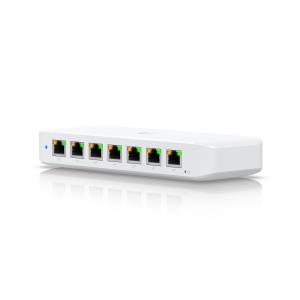

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Management features
Switch type
Managed
Switch layer
L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
10G support
No
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Data transmission
Switching capacity
16 Gbit/s
Throughput
8 Gbit/s
Jumbo frames support
Yes
Multicast features
Multicast support
Yes
Design
Rack mounting
No
Product colour
White
Housing material
Polycarbonate (PC)
Reset button
Yes
LED indicators
Activity, Link, PoE, Status
Wall mountable
Yes
Power
Power source
DC/PoE
Power supply included
Yes
Number of power supply units
1
DC input voltage
44 - 57 V
Input current
3.9 A
Power consumption (max)
9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
7
Power over Ethernet 4PPoE (PoE++) ports quantity
1
Total Power over Ethernet (PoE) budget
202 W
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
203 mm
Depth
76 mm
Height
33 mm
Weight
320 g
Packaging content
Manual
Yes
Certificates
Certification
CE, FCC, IC
