Unifi Protect Network Video Recorder Unvr

Introduction

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

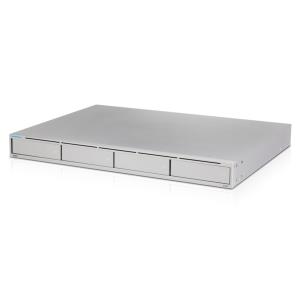

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Performance

Video input channels

4 channels

Storage

HDD capacity

4 GB

RAID support

Y

RAID levels

5

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

1000,10000,100000 Mbit/s

Features

Rack mounting

Y

LED indicators

Y

On/off switch

Y

Product colour

Grey

Processor

Built-in processor

Y

Processor cores

4

Processor frequency

1.7 GHz

Power

Power consumption (max)

100 W

Power consumption (typical)

75 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Output current

2 A

Operational conditions

Operating temperature (T-T)

-5 - 40 °C

Weight & dimensions

Width

442.4 mm

Depth

325 mm

Height

43.7 mm

Weight

5.11 kg
