Introduction

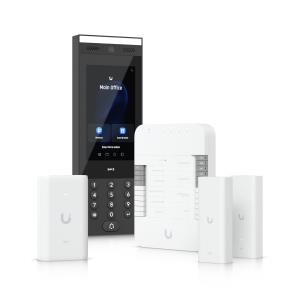

Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera.
Technical details
Type
Semi-intelligent access control reader
Authentication type
Access chip/card, Password, QR code
LED indicators
Status
Built-in relay
Yes
Fingerprint reader
No
Access code reader
No
Access chip/card reader
Yes
Compliance certificates
CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL
Product colour
Black, Grey, White
Housing material
Polycarbonate (PC)
International Protection (IP) code
IP65
Display
Built-in display
Yes
Display diagonal
17.8 cm (7")
Maximum resolution
1024 x 600 pixels
Touchscreen
Yes
Touchscreen technology
Capacitive
Camera
Front camera
Yes
Front camera type
Single camera
Total megapixels
8 MP
Maximum image resolution
3264 x 2448 pixels
Performance
Built-in speaker(s)
Yes
Number of speakers
1
Speaker power
2 W
Ports & interfaces
Bluetooth
Yes
Bluetooth version
4.2
Near Field Communication (NFC)
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
PC connected
No
Power
Input voltage
100 - 240 V
Input current
1.3 A
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
5
Power over Ethernet (PoE) power per port
7 W
Power consumption (max)
5 W
DC voltage range
48 - 50 V
