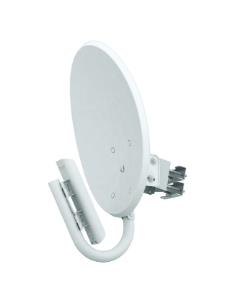

Nanobridge Nbm365 Outdoor Mimo 3.65GHz 22dbi

Introduction

Long-Range Links: 50+ km

With its high-gain reflector, the NanoBridge®M provides high performance at a range of up to 50+ km.

Maximum RF Performance

Ubiquiti’s InnerFeed™ technology seamlessly combines the radio and reflector feed for maximum RF performance.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Powerful airOS® Features

Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

Performance

Frequency band

3.65 - 3.675 GHz

Antenna gain level (max)

22.5 dBi

Features

Antenna connector type

TNC

Voltage Standing Wave Ratio (VSWR)

1.5:1

Survival wind speed

200 km/h

LED indicators

LAN, Power, WLAN

Product colour

White

Certification

FCC

Power

Power consumption (max)

8 W

Technical details

Sustainability certificates

RoHS

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

-30 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

492 mm

Depth

440 mm

Height

705 mm

Weight

4.66 kg
