Introduction

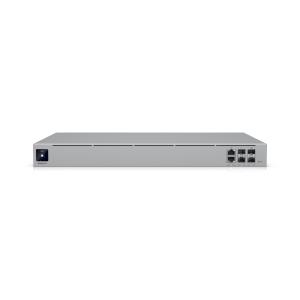

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.
Design
Product colour
Grey
Rack capacity
1U
Enclosure material
Aluminium/SGCC
Mounting type
Rack mounting
LED indicators
Activity, Link, Ready
Performance
Control display unit
Yes
Display type
LCM
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor frequency
2000 MHz
Internal memory
16000 MB
Protocols
DHCP server
Yes
Network
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Firewall throughput
23500 Mbit/s
Sessions per second
71000
Security
Firewall security
Yes
VLAN support
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
WAN connection
Ethernet (RJ-45), SFP
SFP+ ports quantity
2
Management features
Web-based management
Yes
Quality of Service (QoS) support
Yes
Reset button
Yes
Power
Power consumption (max)
82 W
Input voltage
100 - 240 V
Input frequency
50/60 Hz
Input current
7 A
Weight & dimensions
Width
442.4 mm
Depth
325 mm
Height
43.7 mm
Weight
6.5 kg
Packaging content
Cables included
AC
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Display
Touchscreen
Yes
Display diagonal
3.3 cm (1.3")
