Introduction

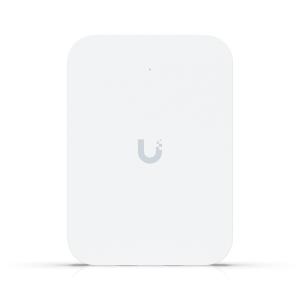

Wall-mounted WiFi? 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
4300 Mbit/s
Maximum data transfer rate (2.4 GHz)
688 Mbit/s
Maximum data transfer rate (5 GHz)
4300 Mbit/s
Ethernet LAN data rates
2500 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Coverage area
115 m²
Number of users
200 user(s)
MIMO
Yes
MIMO type
Multi User MIMO
Spatial streams
4
Fit AP mode features
Hotspot 2.0
Fast roaming
Yes
VLAN support
Yes
Wireless meshing
Yes
Band steering
Yes
Maximum Tx power (2.4 GHz)
23 dBmW
Maximum Tx power (5 GHz)
24 dBmW
Security
Security algorithms
PPSK
Management features
Access point management
Wi-Fi schedule
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
Power
Power over Ethernet (PoE)
Yes
DC voltage range
42.5 - 57 V
Power consumption (max)
13 W
Design
Placement
Wall
Product colour
White
Housing material
Aluminium, Polycarbonate (PC)
Reset button
Yes
LED indicators
Status
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
8 dBi
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Width
98.7 mm
Depth
30.2 mm
Height
137 mm
Weight
400 g
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 40 °C
