Introduction

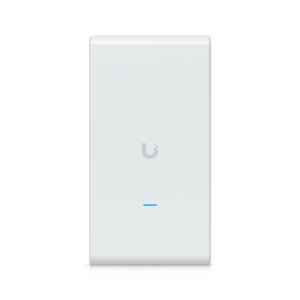

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
2400 Mbit/s
Maximum data transfer rate (2.4 GHz)
573.5 Mbit/s
Maximum data transfer rate (5 GHz)
2400 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
MIMO
Yes
MIMO type
Multi User MIMO
VLAN support
Yes
Quality of Service (QoS) support
Yes
Security
Security algorithms
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Power over Ethernet (PoE)
Yes
DC voltage range
42.5 - 57 V
Power consumption (max)
9 W
Design
Placement
Pole, Wall
Product colour
White
Housing material
Polycarbonate (PC)
International Protection (IP) code
IPX6
Reset button
Yes
LED indicators
Yes
Recommended usage
Indoor/outdoor
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
8 dBi
Weight & dimensions
Width
181.2 mm
Depth
60.2 mm
Height
343.2 mm
Weight
819 g
Packaging content
Quantity per pack
1 pc(s)
AC adapter included
Yes
PoE adapter included
Yes
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 60 °C
Sustainability
Sustainability compliance
Yes
