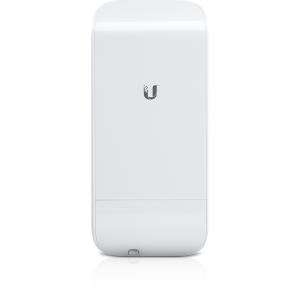

Access Point Nanostation Loco M5 Highpower 2x2 Mimo Airmax Tdma Station White

Introduction

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.

airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.

Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.

World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.

Data transmission

Maximum data transfer rate

150 Mbit/s

Antenna

Antenna type

Internal

Antenna gain level (max)

13 dBi

Wireless LAN features

Wi-Fi

Y

Wi-Fi band

Single-band (5 GHz)

Frequency band

5.17 - 5.875 GHz

Network

Ethernet LAN

Y

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Networking standards

IEEE 802.3,IEEE 802.3u

Cabling technology

10/100Base-T(X)

Ports & interfaces

Connectivity technology

Wired & Wireless

Ethernet LAN (RJ-45) ports

1

Features

Product type

Network bridge

Material

Plastic

Mounting type

Pole

Product colour

White

Power

Power consumption (max)

5.5 W

Power over Ethernet (PoE)

Y

Power over Ethernet (PoE) voltage

24 V

Operational conditions

Operating temperature (T-T)

-30 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Certificates

Certification

FCC, IC, CE, RoHS

Weight & dimensions

Width

80 mm

Depth

31 mm

Height

161 mm

Weight

180 g

Processor

Processor family

Atheros

Processor model

MIPS 74Kc

Processor frequency

560 MHz

Memory

Flash memory

8 MB

RAM capacity

64 MB

RAM type

DDR2
