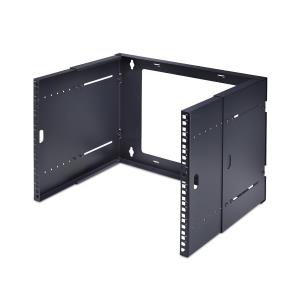

Wall Mounted Rack 2-post 8u - 19in Server Bracket Open Frame

Wall Mounted Rack 2-post 8u - 19in Server Bracket Open Frame

Part Number:
WALLMOUNT8-HAF
Language:
NS

£64.81  (Excl VAT)

Introduction

Mount a server or networking equipment to a wall with this open-frame bracket

This 2-post 8U adjustable wall mount bracket provides a convenient solution for mounting 19-inch rack-mountable shallow servers, patch panels, NAS devices, UPS, data, and networking equipment. The adjustable depth enables customization to accommodate various equipment sizes.

Simplified Installation

This wall-mounted rack features fold-out sides for quick setup, ships fully assembled flat-packed, and includes all the necessary hardware: wood stud screws, M5 cage nuts, and M5 screws and speed up deployment. Four keyhole wall mounting holes provide a straightforward way to securely mount or unmount the rack. The mounting holes are spaced 16" (40.6cm) to match existing wall-stud framework.

Adjustable Depth

The 2-post open rack features an adjustable depth range from 9.6 to 15.6in (24.5 to 39.7cm) to accommodate larger rack-mountable devices. The additional depth can also be used for equipment that may require additional clearance at the back for cable management.

Built to Last

Wall-mount rack bracket is made from 14-gauge (2mm) SPCC steel that can support up to 88lb (40kg) of equipment, providing a stable and sturdy mounting point. The powder-coated finish ensures long-lasting durability, protecting the rack from wear and tear.

The StarTech.com Advantage

Features

Rack capacity

8U

Type

Wall mounted rack

Maximum weight capacity

40 kg

Product colour

Black

Material

Steel

Frame type

Open

Product design

2-post

Mounting hole shape

Square

Preassembled

Yes

Weight & dimensions

Width

397.7 mm

Depth

500 mm

Height

383.5 mm

Weight

7 kg

Mounting depth (min)

24.5 cm

Mounting depth (max)

39.8 cm

Packaging data

Nuts included

Yes

Number of nuts

24

Screws included

Yes

Number of screws

32

Quick installation guide

Yes

Package width

585 mm

Package depth

455 mm

Package height

105 mm

Package weight

9.1 kg

Logistics data

Master (outer) case width

585 mm

Master (outer) case length

455 mm

Master (outer) case height

105 mm

Products per master (outer) case

1 pc(s)

Other features

Compliance industry standards

EIA/ECA-310-E

No options for this product
.
