Introduction

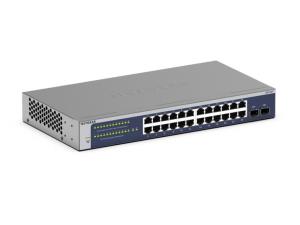

NETGEAR GS724T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Management features
Switch type
Managed
Switch layer
L2+/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
256
Data transmission
Switching capacity
52 Gbit/s
MAC address table
16000 entries
Number of queues
8
Number of static routes
32
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
2 MB
Security
DHCP features
DHCP client, DHCP snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
HTTPS, SSL/TLS
MAC address filtering
Yes
SSH/SSL support
Yes
Multicast features
Multicast support
Yes
Number of multicast groups filtered
512
Protocols
Management protocols
SNMP v1/v2
Design
Rack mounting
Yes
Form factor
1U
Product colour
Blue, Grey
LED indicators
Activity, Link
Number of fans
0 fan(s)
Performance
Noise level
0 dB
Firmware upgradeable
Yes
Mean time between failures (MTBF)
1999946 h
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
13.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Weight & dimensions
Width
328 mm
Depth
169 mm
Height
43 mm
Weight
1.62 kg
