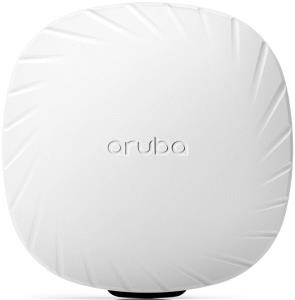

Aruba Networking AP-503-RW Dual Radio 2x2:2 802.11ax Wi-Fi 6 Campus Access Point

Aruba Networking AP-503-RW Dual Radio 2x2:2 802.11ax Wi-Fi 6 Campus Access Point

Part Number:
R8M98A
Language:
IN

£208.92  (Excl VAT)

Introduction

The Aruba 503 Series Access Points (APs) provide costeffective, high-performance connectivity for any organization experiencing device growth due to increased mobility, the shift to cloud, or IoT. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), the 503 Series deliver the speed and reliability needed for medium-density
venues and workplaces such as schools, midsize offices, and retailers. Each 503 Series AP provides connectivity for a maximum of 256 associated clients per radio (512 in total).

Features

2.4 GHz

Yes

5 GHz

Yes

6 GHz

No

Maximum data transfer rate

1490 Mbit/s

Networking standards

IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g

Cabling technology

10/100/1000Base-T(X)

MIMO

Yes

Trusted Platform Module (TPM)

Yes

Security

Security algorithms

WPA3, WPA, WPA2

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

1

USB connector type

USB Type-A

Power

Power over Ethernet (PoE)

Yes

Design

Product colour

White

Reset button

Yes

LED indicators

Reset, Status, System

Antenna

Antenna type

Internal

Antenna direction type

Omni-directional

Antenna gain level (max)

4.8 dBi

Weight & dimensions

Width

145 mm

Depth

35 mm

Height

145 mm

Weight

255 g

Packaging data

Package width

196 mm

Package depth

183 mm

Package height

67 mm

Package weight

515 g

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 55 °C

Storage relative humidity (H-H)

10 - 100%
