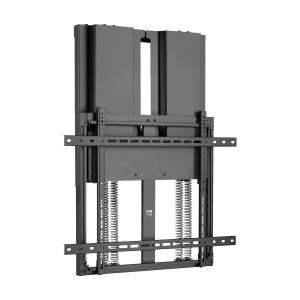

TRIPP LITE Height-Adjustable TV Wall Mount for 70 to 90in Flat-Panel Interactive Displays

Introduction

TV Wall Mount Secures Your Interactive Touchscreen Display at Arm’s Length
The VESA-compliant DWM7090HD mounts your television, monitor, whiteboard or interactive display to a wood stud, brick or concrete wall with the included hardware. Recommended for conference rooms, boardrooms and classrooms, this wall mount supports most popular brands of interactive touchscreen displays, including Promethean, Balance Box and Balt.

Glides Up and Down with Just a Touch for Perfect Viewing
Intricately designed counterbalanced springs allow the connected display to glide up and down the wall, allowing users of all sizes to adjust and work at the interactive touchscreen. With 15.7 inches (40 centimeters) of vertical movement, the DWM7090HD provides easy fingertip control for everyone.

Durable All-Metal Construction Built to Last
This height-adjustable TV wall mount is made from heavy-duty steel with a powder-coated black finish that resists scratches and blends smoothly into any room décor. It is compatible with most flat-screen televisions, monitors and interactive digital whiteboards between 70 and 90 inches and supports up to 198 pounds (90 kilograms).

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this TV wall mount supports the following VESA mounting hole patterns: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 500, 400 x 600, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 700 x 400, 700 x 500, 700 x 600, 800 x 500 and 800 x 600.

Mounting

Minimum screen size

177.8 cm (70")

Maximum weight capacity

90 kg

Maximum screen size

2.29 m (90")

Minimum VESA mount

200 x 200 mm

Maximum VESA mount

800 x 600 mm

Panel mounting interface

200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,600 x 400,600 x 600,600 x 300,600 x 500,700 x 400,700 x 500,700 × 600,800 x 400,800 x 500,800 x 600

Number of displays supported

1

Mounting type

Wall

Ergonomics

Height adjustment

Y

Height adjustment type

Manual

Distance to the wall (max)

12.7 cm

Design

Product colour

Black

Housing material

Steel

Technical details

Quantity per pack

1 pc(s)

Sustainability certificates

REACH, RoHS

Packaging content

Manual

Y

Mounting kit

Y

Weight & dimensions

Width

840 mm

Depth

127 mm

Height

1039.9 mm

Weight

25.7 kg

Packaging data

Package width

739.1 mm

Package depth

739.1 mm

Package height

140 mm

Package weight

28.9 kg

Logistics data

Master (outer) case width

795 mm

Master (outer) case length

795 mm

Master (outer) case height

154.9 mm

Master (outer) case gross weight

32 kg

Products per master (outer) case

1 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332268836

Harmonized System (HS) code

8302.50.0000

Other features

Country of origin

China
