EATON CORPORATION

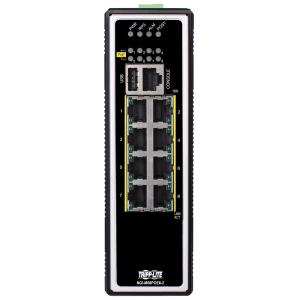

TRIPP LITE 8-Port Managed Industrial Gigabit Ethernet Switch - Layer 2, 1 Gbps, PoE+ 30W, -40ø to 75øC, DIN Mount

TRIPP LITE 8-Port Managed Industrial Gigabit Ethernet Switch - Layer 2, 1 Gbps, PoE+ 30W, -40ø to 75øC, DIN Mount

Part Number:
NGI-M08POE8-L2
Language:
IN

£608.90  (Excl VAT)

Introduction

8-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the NGI-M08POE8-L2 is powered on and which Ethernet ports are showing activity.

PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This managed switch features eight PoE ports capable of powering compatible PoE appliances and devices, such as VoIP phones and IP surveillance cameras, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-M08POE8-L2 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your demand for high-power network devices.

Protective Metal Housing Built to Last in Harsh Environments
The compact NGI-M08POE8-L2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining, power/utility, security and water/wastewater applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Monitors and Controls Devices via CLI and Web Configuration
The NGI-M08POE8-L2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection.

Pre-Loaded with Standard Layer 2 Network Management Software
This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices.

Works with the Most Popular Web Browsers
The NGI-M08POE8-L2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-M08POE8-L2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

TAA-Compliant for GSA Schedule Purchases
The NGI-M08POE8-L2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Management features

Switch type

Managed

Switch layer

L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Console port

RJ-45

USB 2.0 ports quantity

1

Power connector

Terminal block (6-pin)

Network

Networking standards

IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x

10G support

N

Copper ethernet cabling technology

10BASE-T,100BASE-TX,1000BASE-T

Full duplex

Y

Broadcast storm control

Y

Auto MDI/MDI-X

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto-negotiation

Y

MAC address auto-learning supported

Y

Data transmission

Switching capacity

16 Gbit/s

MAC address table

16000 entries

Jumbo frames support

Y

Jumbo frames

10000

Security

DHCP features

DHCP snooping

Security algorithms

SNMP

Design

Product colour

Black

Housing material

Aluminium

Reset button

Y

LED indicators

Y

DIN rail mounting

Y

Country of origin

Taiwan

Certification

FCC, TAA

Performance

Harmonized System (HS) code

8517.62.0020

Technical details

Sustainability certificates

CE, REACH, RoHS

Master (outer) case GTIN (EAN/UPC)

10037332266962

Power

Power supply included

Y

DC input voltage

24 - 57 V

Input current

5.8 A

Power consumption (typical)

15 W

Power consumption (max)

240 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet plus (PoE+) ports quantity

8

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

240 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 2000 m

Weight & dimensions

Width

50 mm

Depth

119.9 mm

Height

160 mm

Weight

960 g

Packaging data

Package width

232.9 mm

Package depth

182.9 mm

Package height

62 mm

Package weight

1.17 kg

Logistics data

Master (outer) case width

334 mm

Master (outer) case length

384 mm

Master (outer) case height

260.1 mm

Master (outer) case gross weight

12.5 kg

Products per master (outer) case

10 pc(s)
