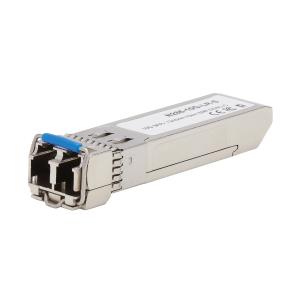

CISCO-COMPATIBLE SFP-10G-LR-S SFP+ TRANSCEIVER - 10GBASE-LR DD

Introduction

SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
This SFP+ transceiver allows you to connect an 9/125 singlemode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 10 kilometers (721 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Cisco SFP-10G-LR-S Transceiver Module
The MSA-compliant N286-10G-LR-S functions just like the equivalent Cisco SFP-10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-10G-LR-S.

Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of various operating statuses in real time, including transceiver temperature, input and output power, and supply voltage.

S-Class Transceiver Highly Recommended for Enterprise Network
This S-Class fiber transceiver module is ideal for enterprise network runs of shorter distances than other standard modules. The S-Class N286-10G-LR-S supports only Ethernet protocol and operates only within commercial temperature ranges (0 to 70°C).

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Y

Multi-mode fiber (MMF) supported

N

Fiber optic connector

LC

Fiber cable diameters supported (core/cladding)

8.3/125 µm

SFP transceiver standard

LR

Maximum transfer distance

10000 m

Wavelength

1310 nm

Digital Diagnostics Monitoring (DDM)

Y

Harmonized System (HS) code

8517.62.0090

Features

Product colour

Silver

Hot-swap

Y

Country of origin

China

Brand compatibility

Cisco

Operational conditions

Minimum operating temperature

-5 °C

Maximum operating temperature

85 °C

Operating temperature (T-T)

-5 - 85 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 85%

Storage relative humidity (H-H)

5 - 85%

Weight & dimensions

Width

13.5 mm

Depth

56.6 mm

Height

8.4 mm

Weight

50 g

Packaging data

Number of products included

1 pc(s)

Package width

45.7 mm

Package depth

116.8 mm

Package height

19 mm

Package weight

50 g

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332249248

Logistics data

Master (outer) case width

121.9 mm

Master (outer) case length

236.2 mm

Master (outer) case height

61 mm

Master (outer) case gross weight

540 g

Products per master (outer) case

10 pc(s)
