EATON CORPORATION
MTP/MPO FAN-OUT CABLE WITH PUSH/PULL TAB CONNECTORS MTP/MPO

MTP/MPO FAN-OUT CABLE WITH PUSH/PULL TAB CONNECTORS MTP/MPO

Part Number:
N844-05M-8LC-PT
Language:
UK

£150.36  (Excl VAT)

Introduction

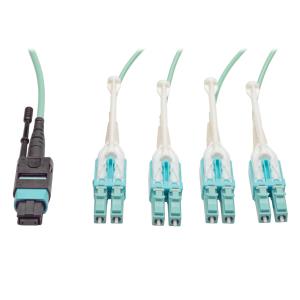

MTP / MPO to 8 x LC Fan-out Cable
Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
Slim uniboot design saves space and makes cables easier to manage
Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
Sturdy plastic housing for long-lasting durability
OM3, 40GbE rated, 40GBASE-SR4
Backward compatible with existing 50/125 fiber
Plenum rated jacket

Features

Cable length

5 m

Connector 1

MPO/MTP

Connector 2

LC

Connector 1 gender

Male

Connector 2 gender

Male

Fibre optic type

OM3

Product colour

Blue

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Data transfer rate

40 Gbit/s

Country of origin

China

Harmonized System (HS) code

8544.70.0000

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332185287

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

90 g

Logistics data

Master (outer) case width

185.4 mm

Master (outer) case length

154.9 mm

Master (outer) case height

149.9 mm

Master (outer) case gross weight

1.04 kg

Products per master (outer) case

10 pc(s)
