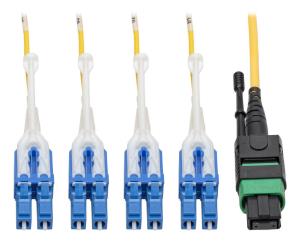

MTP/MPO (APC) TO 4XLC (UPC) SINGLEMODE BREAKOUT PATCH CABLE

Introduction

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
MTP/MPO female connector and 8 LC duplex male connectors-no splicing required
12-fiber MTP/MPO connector 12 times denser than SC connector
APC connector angled to prevent light from reflecting back into laser
UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
Push/pull tabs easy to install and remove with one hand

Error-Free Signal Transfer
Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
100% tested for low insertion loss and back reflection
Slim, space-saving uniboot design easier to manage in crowded applications

Features

Cable length

3 m

Connector 1

MPO/MTP

Connector 2

LC

Connector 1 gender

Male

Connector 2 gender

Female

Cable type

OFNP

Product colour

Aqua colour

Fiber mode structure

Multi-mode

Data transfer rate

100 Gbit/s

Country of origin

China

Harmonized System (HS) code

8544.70.0000

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332205411

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

60 g

Logistics data

Master (outer) case width

185.4 mm

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

690 g

Products per master (outer) case

10 pc(s)
