P3267-lve Mic Dome Camera

Introduction

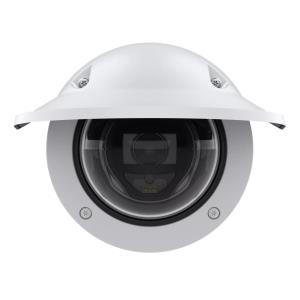

AXIS P3267-LVE Dome Camera

Ideal for versatile surveillance, this dome camera supports advanced analytics based on deep learning on the edge. Plus, AXIS P3267-LVE Mic is available with a built-in microphone, so it's out-of-the-box-ready for AXIS Audio Analytics.

Excellent image quality

AXIS P3267-LVE delivers outstanding image quality and forensic details in 5 MP at up to 60 fps. Including a varifocal 9 mm lens for wide-area surveillance, it offers a 104°-40° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Deep learning analytics on the edge

Built on an Axis system-on-chip, AXIS P3267-LVE includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect and classify humans, vehicles, and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, AXIS P3267-LVE Mic is available with a built-in microphone, so it’s out-of-the-box-ready for AXIS Audio Analytics.

Versatile and high performance

This easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and autofocus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine-tuning. With audio and I/O connectivity you can integrate peripheral equipment to extend the value of your system. Furthermore, this robust, IK10-rated outdoor-ready camera features Axis edge vault, a hardware-based cybersecurity platform that safeguards the devices and protects sensitive information from unauthorized access.

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

PTZ modes

Digital PTZ

Preset points

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Number of languages

12

Languages support

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian

Certification

EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

White

Housing material

Polycarbonate (PC)

International Protection (IP) code

IP66

IK code

IK10

Weatherproof

Yes

Camera

Camera pan control

Yes

Camera tilt control

Yes

Minimum illumination

0.13 lx

Angle of rotation

190°

Tilt angle range

-10 - 80°

Pan range

-190 - 190°

Camera shutter speed

1/33500 - 1/5 s

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Zoom capability

Yes

Number of lenses

1

Focal length range

3 - 8 mm

Normal focusing range

1 m

Night vision

Night vision

Yes

Night vision distance

40 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

2592 x 1944 pixels

Total megapixels

5 MP

Video compression formats

H.264, H.265, M-JPEG

Video recording

Yes

Frame rate

30 fps

Video streaming

Yes

Gain control type

Auto

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Flip & mirror

Yes

Privacy masking

Yes

Text caption overlay

Yes

Bit rate control

Variable Bit Rate (VBR)

Smart IR

Yes

Audio

Audio formats supported

AAC-LC, ADPCM, G.711, G.726, LPCM, PCM

Audio detection

Yes

Sample rates

8 - 48 kHz

Network

Ethernet LAN

Yes

Networking standards

IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

Wi-Fi

No

Bluetooth

No

Quality of Service (QoS) support

Yes

Streaming method

Multicast

Storage

Built-in HDD

No

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

8192 MB

RAM capacity

2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Terminal block port

Yes

Security

Password protection

Yes

Video motion detection

Yes

Active tampering alarm

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Alert notification type

E-mail

Privacy protection

Yes

Pixel counter

Yes

Digest authentication

Yes

Power

Power source type

PoE

Power consumption (typical)

6.4 W

Power consumption (max)

12.1 W

Operational conditions

Operating temperature (T-T)

-40 - 50 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

149 mm

Height

107 mm

Weight

900 g

Sustainability

Compliance certificates

REACH, RoHS

Packaging content

Number of cameras

1

Drilling template included

Yes

Manual

Yes
