Introduction

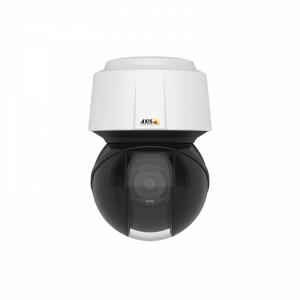

AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Yes
Auto-tracking
Yes
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Processor model
ARTPEC-7
Number of languages
11
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Design
Form factor
Dome
Mounting type
Ceiling
Product colour
Black, White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IP66
IK code
IK08, IK10
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.01 lx
Lens viewing angle, horizontal
58.3 – 2.4
Lens viewing angle, vertical
34.9 – 1.3
Tilt angle range
20 - 90°
Tilt speed
500 °/sec
Pan range
0 - 360°
Pan speed
700 °/sec
Camera shutter speed
1/66500 - 2 s
Image sensor
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Yes
Sensor type
CMOS
Lens system
Zoom capability
Yes
Optical zoom
32x
Digital zoom
12x
Number of lenses
1
Focal length range
4.3 - 137.6 mm
Auto focus
Yes
Maximum aperture number
4
Minimum aperture number
1.4
Night vision
Night vision
Yes
Night vision distance
250 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
1920 x 1080 pixels
Video compression formats
H.264, H.265, M-JPEG
Supported graphics resolutions
320 x 180, 1920 x 1080 (HD 1080)
Supported video modes
1080p
Frame rate
60 fps
Video streaming
Yes
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Privacy masking
Yes
Text caption overlay
Yes
Audio
Audio system
2-way
Network
Ethernet LAN
Yes
Networking standards
IEEE 802.1x, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog
Wi-Fi
No
Bluetooth
No
Quality of Service (QoS) support
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Yes
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Alert notification type
E-mail
Pixel counter
Yes
Digest authentication
Yes
Power
Power source type
AC, PoE
AC input voltage
100 - 240 V
Power consumption (typical)
13.5 W
Power consumption (max)
51 W
Power consumption (Power over Ethernet (PoE))
37 W
Operational conditions
Operating temperature (T-T)
-30 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
241 mm
Diameter
16.5 cm
Weight
3 kg
Packaging content
Number of cameras
1
Manual
Yes
Other features
Doesn't contain
PVC
Warranty period
5 year(s)
