Introduction

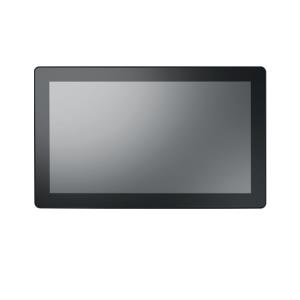

UTC-115 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.
Display
Display diagonal
39.6 cm (15.6")
Display resolution
1920 x 1080 pixels
Touchscreen
Yes
Display brightness
300 cd/mē
Touchscreen technology
Projected capacitive system
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
Display number of colours
262144 colours
Processor
Processor manufacturer
Intel
Processor family
IntelŪ PentiumŪ
Processor model
N4200
Processor cores
4
Processor frequency
1.1 GHz
Processor cache
2 MB
Memory
Internal memory
4 GB
Internal memory type
DDR3L-SDRAM
Maximum internal memory
8 GB
Number of memory slots
1
Memory slots type
SO-DIMM
Memory clock speed
1600 MHz
Storage
Total storage capacity
128 GB
Storage media
SSD
SSD capacity
128 GB
Graphics
Graphics card manufacturer
Intel
Graphics card
HD Graphics 505
Features
Certification
FCC, CB, UL, CCC, BSMI
IP65
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
DVI port
No
Line-out
Yes
Microphone in
Yes
RS-232 ports
2
DC-in jack
Yes
Design
Chassis type
All-in-One
Product colour
Silver
Software
Operating system installed
Windows 10
Power
AC adapter output voltage
12 - 24 V
AC adapter output current
5 A
Power supply
60 W
Power consumption (typical)
26 W
Operational conditions
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 40 °C
Ergonomics
Wall mountable
Yes
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Weight & dimensions
Width
398.8 mm
Depth
29.5 mm
Height
248.2 mm
Weight
2.4 kg
Packaging data
Quantity per pack
1 pc(s)
Packaging content
Cables included
AC
Technical details
Compliance certificates
CE
Logistics data
Harmonized System (HS) code
84715000
Sustainability
Sustainability compliance
Yes
