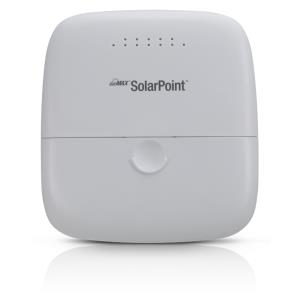

Sunmax Solarpoint Sm-sp-40 4-port

Introduction

SunMAX™ SolarPoint™ is a remote managed MPPT 24V 7A charge controller with a built-in 4 port 24V PoE 10/100Mbps switch and one DC output delivering up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site's existing and future performance.

WAN connection

Ethernet WAN

Y

Wireless LAN features

Wi-Fi band

Single-band (2.4 GHz)

Network

Ethernet LAN

Y

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Cabling technology

10/100Base-T(X)

Mobile network

Mobile network generation

4G

3G

N

4G

N

Ports & interfaces

Ethernet LAN (RJ-45) ports

4

USB port

N

Memory card slot(s)

N

Design

Product colour

White

Antenna

Antenna type

Internal

Power

Power source type

DC

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

-20 - 50 °C

Weight & dimensions

Width

202 mm

Depth

186 mm

Height

50 mm

Weight

650 g
