TS-H765EU-8G - 1U 4-bay 3.5 SATA+3 x E1.S/Pci-e M.2

Introduction

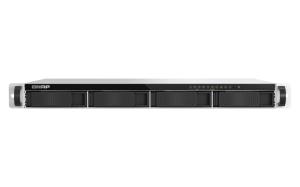

TS-h765eU
Compact 1U short-depth rackmount NAS, with E1.S/M.2 PCIe NVMe slots and 10GbE expandability

The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.

Storage

Supported storage drive interfaces

Serial ATA II, Serial ATA III

Storage drive sizes supported

3.5,E1.S

RAID support

Yes

RAID levels

0, 1, 5, 6, 10, 50, JBOD

Online RAID migration

Yes

Online RAID expansion

Yes

RAID rebuild

Yes

Hot-swap drive bays

Yes

Supported file systems

FAT32, HFS+, NTFS, exFAT, ext3, ext4

Storage drives installed

No

Number of storage drives supported

4

Installed storage drive type

No

Supported storage drive types

HDD & SSD

Auto-rebuild

Yes

Bad block scan

Yes

Disk roaming

Yes

Processor

Processor manufacturer

Intel

Processor family

Intel Atom®

Processor boost frequency

3.4 GHz

Processor cores

4

Number of processors supported

1

Memory

Internal memory

8 GB

Internal memory type

DDR5

Maximum RAM supported

16 GB

Memory slots

1

Memory form factor

SO-DIMM

Flash memory

8000 MB

Network

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000,2500 Mbit/s

DHCP server

Yes

iSCSI support

Yes

Dynamic DNS (DDNS)

Yes

Ports & interfaces

USB port

Yes

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Ethernet LAN (RJ-45) ports

2

Concurrent connections

1500

Design

Chassis type

Rack (1U)

Cooling type

Active

Product colour

Black, Grey

Number of fans

3 fan(s)

Fan diameter

4 cm

LED indicators

Yes

Performance

Type

NAS

Device class

Small & Medium Business

Backup function

Yes

Buzzer

Yes

Snapshot

Yes

Reset button

Yes

On/off switch

Yes

Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Password authentication

Yes

Disk scan

Yes

S.M.A.R.T. support

Yes

Remotely operated

Yes

Software

Operating system installed

QuTS hero

Operating system version

h5.2.3

Windows operating systems supported

Windows 10, Windows 11, Windows 7, Windows 8

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Other operating systems supported

IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11

Power

Power supply location

Built-in

Power supply unit (PSU) capacity

150 W

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Weight & dimensions

Width

430 mm

Depth

292.1 mm

Height

43 mm

Weight

4.51 kg

Packaging content

Cables included

AC

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Storage temperature (T-T)

20 - 70 °C
