MTP/MPO FAN-OUT CABLE WITH PUSH/PULL TAB CONNECTORS MTP/MPO

Introduction

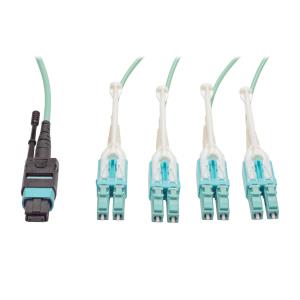

MTP / MPO to 8 x LC Fan-out Cable
Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
Slim uniboot design saves space and makes cables easier to manage
Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
Sturdy plastic housing for long-lasting durability
OM3, 40GbE rated, 40GBASE-SR4
Backward compatible with existing 50/125 fiber
Plenum rated jacket

Features

Cable length

1 m

Connector 1

MPO/MTP

Connector 2

LC

Connector 1 gender

Male

Connector 2 gender

Male

Fibre optic type

OM3

Product colour

Blue

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Data transfer rate

40 Gbit/s

Country of origin

China

Harmonized System (HS) code

8544.70.0000

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332185256

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

60 g

Logistics data

Master (outer) case width

185.4 mm

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

690 g

Products per master (outer) case

10 pc(s)
