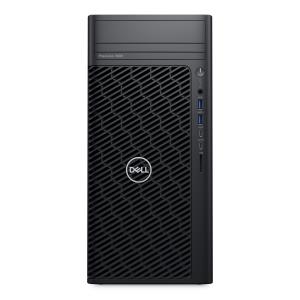

Precision 3680 - I9 14900k - 32GB Ram - 1TB SSD- Win11 Pro - Azerty Belgian

Introduction

Exceptionally scalable performance in an entry tower design
The new 3680 Tower is Dell's fastest workstation for single-threaded tasks, featuring new 14th Gen Intel® Core™ processors with Unlimited Turbo Duration.

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i9

Processor generation

Intel® Core™ i9 (14th gen)

Processor model

i9-14900K

Processor cores

24

Processor threads

32

Processor boost frequency

6 GHz

Performance cores

8

Efficient cores

16

Performance-core Max Turbo Frequency

5.6 GHz

Efficient-core Max Turbo Frequency

4.4 GHz

Performance-core base frequency

3.2 GHz

Efficient-core base frequency

2.4 GHz

Processor cache

36 MB

Processor cache type

Smart Cache

Number of processors installed

1

Number of processors supported

1

Processor base power

125 W

Maximum turbo power

253 W

Memory

Internal memory

32 GB

Maximum internal memory

128 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

2 x 16 GB

Memory slots

4x DIMM

ECC

No

Non-ECC

Yes

Memory channels

Dual-channel

Memory data transfer rate

4400 MT/s

Storage

Total storage capacity

1 TB

Storage media

SSD

Optical drive type

No

Number of storage drives installed

1

Total SSDs capacity

1 TB

Number of SSDs installed

1

SSD capacity

1 TB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Card reader integrated

Yes

Compatible memory cards

SD

RAID support

No

Graphics

Discrete graphics card

No

On-board graphics card

Yes

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel UHD Graphics 770

Maximum on-board graphics card resolution

7680 x 4320 pixels

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

LAN controller

Intel® I219-LM

Wi-Fi

No

Bluetooth

No

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

3

USB 3.2 Gen 2x2 Type-C ports quantity

1

PowerShare

Yes

Number of USB ports with PowerShare support

2

DisplayPorts quantity

2

DisplayPort version

1.4a

Ethernet LAN (RJ-45) ports

1

Line-out

Yes

Combo headphone/mic port

Yes

Number of rear USB ports

6

Number of front USB ports

4

Design

Chassis type

Tower

Placement supported

Vertical

Water cooling system

No

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

Viewing window

No

Intel® vPro™ Platform Eligibility

Yes

Performance

Market positioning

Business

Motherboard chipset

Intel W680

Audio chip

Realtek ALC3246-CG

Audio system

High Definition Audio

Built-in speaker(s)

Yes

Number of speakers

1

Password protection

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Product type

Workstation

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Operating system language

German, Dutch, English, French, Italian

Trial software

Activate Your Microsoft 365 For A 30 Day Trial

Power

Power supply

1000 W

Power supply input voltage

90 - 264 V

Power supply input frequency

47/63 Hz

80 PLUS certification

80 PLUS Platinum

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

20 - 85%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating vibration

0.52 G

Non-operating vibration

2 G

Operating shock

40 G

Non-operating shock

105 G

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR, EPEAT Gold

Weight & dimensions

Width

173 mm

Depth

420.2 mm

Height

372.9 mm

Packaging content

Display included

No

Mouse included on selected markets

Dell Optical Mouse-MS116 - Black

Keyboard included on selected markets

Dell Multimedia Keyboard-KB216 - UK (QWERTY) - Black

Cables included

AC
