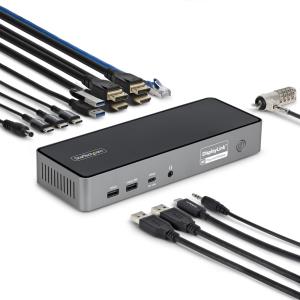

Triple-monitor Docking Station 4k 60hz Hdmi/DisplayPort

Introduction

Universal triple-monitor dock compatible with macOS, Windows, and ChromeOS

This universal docking station offers high-resolution display support and broad OS compatibility to simplify device management and user experience, making it ideal for modern professional workspaces including hot desks and mixed-device environments.

Triple 4K Display Support & 140W USB-C Charging

Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments.

GPU Agnostic for Cross-Platform IT Deployments

DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. The USB-C video output port leverages the laptop's built-in GPU to deliver high-performance video output. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations.

Enterprise-Grade Networking & Physical Security

The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB Power Delivery (USB PD)

Yes

HDMI ports quantity

2

HDMI version

2.1

DisplayPorts quantity

2

DisplayPort version

1.4

Combo headphone/mic port

Yes

Headphone outputs

1

Headphone connectivity

3.5 mm

DC-in jack

Yes

USB Type-C DisplayPort Alternate Mode

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Wake-on-LAN ready

Yes

Full duplex

Yes

Performance

Card reader integrated

No

Data transfer rate

10 Gbit/s

HD type

4K Ultra HD

Maximum digital resolution

3840 x 2160 pixels

Number of displays supported

3

Cable lock slot

Yes

Cable lock slot type

Kensington, Nano, Wedge

Product colour

Grey

On/off switch

Yes

UASP support

Yes

Power

Power source type

DC

AC input voltage

100 - 240 V

Input current

2.5 A

Output voltage

20 V

Output current

10.5 A

Power consumption (max)

210 W

Power plug type

Type M

Compatible power plug types

EU, UK

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Mac operating systems supported

Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia

Linux operating systems supported

Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04, Ubuntu 24.04 LTS

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Packaging data

Package width

169 mm

Package depth

251 mm

Package height

90 mm

Package weight

1.2 kg

Packaging content

Cables included

AC, USB Type-C

AC adapter included

Yes

User guide

Yes

Technical details

Compliance certificates

Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Logistics data

Products per master (outer) case

6 pc(s)

Master (outer) case width

315 mm

Master (outer) case length

395 mm

Master (outer) case height

300 mm

Other features

Chipset

DisplayLink - DL6950, Genesys Logic - GL5911, Genesys Logic - GL5910, Genesys Logic - GL3590, Realtek - RTL8156B
