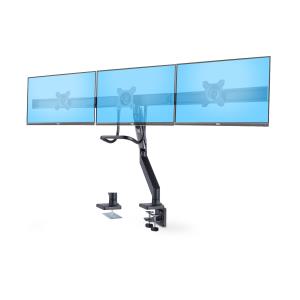

Crossbar Triple Monitor Desk Mount For Up To Three 27in Screens Vesa 75x75/100x100 Tool-less A

Introduction

Triple monitor desk mount with support for up to 27" monitors with height adjustable crossbar

This crossbar monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. A built-in handle enables moving all monitors simultaneously, while the spring-assisted arm allows multiple adjustments to suit different ergonomic needs.

Height Adjustment with One Smooth Motion

The spring arm enables toolless height adjustment of up to 13in (330mm) with effortless one-touch motion. The max arm extension is 20.7in (526mm), and the weight capacity is 13.2lb (6kg) per monitor.

Visual Experience

This triple monitor mount features micro height adjustment screws on the VESA plate that enable perfect alignment of all three monitors. This is ideal for bezel-less or slim bezel displays, helping to create a more extensive and seamless viewing area. The outer displays' VESA mounts slide along the crossbar, allowing further adjustments.

Range of Motion

The monitor crossbar allows toolless adjustments of +/-15° horizontal swivel of the outer displays. The monitors' VESA mounts enable +/-10° horizontal swivel, +5/-15° tilt, and 360° screen rotation for portrait or landscape orientations.

Cable Management

To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip at the base maintains an organized workspace.

The StarTech.com Advantage

Mounting

Minimum screen size

43.2 cm (17")

Maximum weight capacity

18 kg

Maximum weight capacity (per display)

6 kg

Maximum screen size

68.6 cm (27")

Mounting

Clamp/Grommet

Mounting type

Desk

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Number of displays supported

3

Extension arm (max)

52.6 cm

Desk thickness (min)

1 cm

Desk thickness (max)

8.5 cm

Ergonomics

Height adjustment

Yes

Height adjustment range

265 - 595 mm

Tilt angle range

-15 - 5°

Swivel angle range

-10 - 10°

Rotating

Yes

Angle of rotation

360°

Pivot angle

-180 - 180°

Cable management

Yes

Design

Housing material

Aluminium, Plastic, Steel

Product colour

Black, Silver

Anti-theft function

No

Weight & dimensions

Width

630 mm

Depth

1400 mm

Height

595 mm

Weight

8.4 kg

Packaging data

Package width

330 mm

Package depth

610 mm

Package height

150 mm

Package weight

10 kg

Packaging content

Wrench included

Yes

Wrench type

Hexagonal wrench

VESA mount included

Yes

Number of cable clips

6

Screws included

Yes

Number of screws

47

Number of washers included

14

Grommet base plate included

Yes

Manual

Yes

Logistics data

Master (outer) case width

330 mm

Master (outer) case length

610 mm

Master (outer) case height

150 mm

Products per master (outer) case

1 pc(s)
