Serial To Ethernet Adapter - Lan To Db9 Convert Rs232 Over Ip

Introduction

Streamline RS-232 connectivity for serial device management over IP

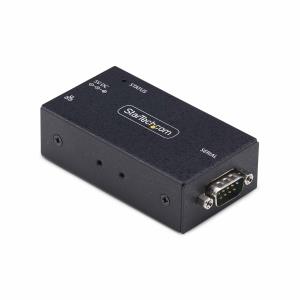

This 1-port serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.

Configuration and Management

The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.

The product family includes the following options:

• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)

Flexible Installation and Rugged Chassis

The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x 25x 81.9mm) is ideal for environments where space is at a premium.

Ethernet and Power Options

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.

The StarTech.com Advantage

Network

Networking standards

IEEE 802.3i, IEEE 802.3u

Auto-negotiation

Yes

Auto MDI/MDI-X

Yes

Full duplex

Yes

Technical details

Host interface

RS-232

Output interface

RJ-45

Connector 1

DB-9

Connector 2

RJ-45

Connector gender

Female/Female

Mounting

Wall/DIN

Baud rate

921.6 Kbit/s

Product colour

Black

Data bits

7, 8

Parity bit

Even, Mark, No, Odd, Space

Stop bits

1, 2

Compliance certificates

Trade Agreements Act (TAA)

Flow Control type

No, RTS/CTS, XON/XOFF

Electrostatic Discharge (ESD) protection (air)

15 kV

Electrostatic Discharge (ESD) protection (contact)

8 kV

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-20 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

82 mm

Depth

46 mm

Height

25 mm

Weight

155 g

Package width

166 mm

Package depth

242 mm

Package height

55 mm

Package weight

5 kg

Power

Input voltage

100 - 240 V

Input current

0.48 A

Output voltage

5 V

Output current

3 A

Power consumption (typical)

15 W

Material

Housing material

Steel

Indication

LED indicators

Yes

Packaging content

Mounting brackets included

Yes

Number of screws included

4 pc(s)

AC adapter included

Yes

DIN rail included

Yes

Packaging data

Manual

Yes

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Logistics data

Products per master (outer) case

15 pc(s)

Master (outer) case length

420 mm

Master (outer) case width

410 mm

Master (outer) case height

280 mm
