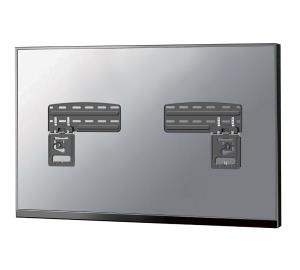

Neomounts Ultra-flat Fixed Wall Mount For 43-85in Samsung Screens

Neomounts Ultra-flat Fixed Wall Mount For 43-85in Samsung Screens

Part Number:
WL30-265BL1
Language:
NS

£32.41  (Excl VAT)

Introduction

The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.

The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.


* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:

-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC

2023 Samsung models
-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
-\t50-85": The Frame (2021-2023)

2022 Samsung models
-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B

2021 Samsung models
-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)

NOT compatible with Samsung models
-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C
-\tCrystal UHD CU7000

For detailed compatibility, please refer to the online manual.

Mounting

Minimum screen size

109.2 cm (43")

Maximum weight capacity

60 kg

Maximum screen size

2.16 m (85")

Minimum VESA mount

150 x 100 mm

Maximum VESA mount

1200 x 800 mm

Panel mounting interface

200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,300 x 900,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,460 x 640,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600,800 x 800,900 x 600,1000 x 400,1000 x 600,1000 x 700,1000 x 800,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 600,1600 x 600

Number of displays supported

1

Mounting type

Wall

Ergonomics

Type

Fixed

Distance to the wall (max)

7.5 cm

Design

Product colour

Black

Housing material

Steel

Technical details

Warranty period

5 year(s)

Features

Compatible products

- 43-85": Crystal UHD Signage Displays QMC, QBC, QHC 2023 Samsung - 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000 - 50-85": The Frame (2021-2023) 2022 Samsung - 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B 2021 Samsung - 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)

Weight & dimensions

Width

640 mm

Depth (max)

7.5 cm

Height

236 mm

Logistics data

Products per master (outer) case

10 pc(s)

Products per pallet (EU)

243 pc(s)
