MICROCHIP TECHNOLOGY

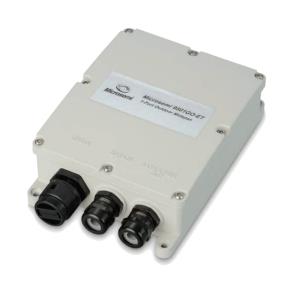

Single-Port, IP67, IEEE 802.3bt Type3, 60W Outdoor midspan

Single-Port, IP67, IEEE 802.3bt Type3, 60W Outdoor midspan

Part Number:
PD-9501GCO/AC
Language:
IN

£173.36  (Excl VAT)

Introduction

Microsemi's PD-9501GO-ET Power over Ethernet (PoE) single-port midspan offers a cost-effective, IEEE 802.3at-compliant solution for outdoor installations, guaranteeing 60 W of power and ensuring safe and reliable operation of any standard PoE data terminal in an outdoor environment. It allows wireless LAN access points, security network cameras, and other IP terminals to receive both power and data over standard Ethernet cables while leaving the network infrastructure completely unaltered. The PD-9501GO-ET also offers surge protection for both the AC and PoE ports, ensuring the indoor equipment is protected from outdoor surges.

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Y

Networking standards

IEEE 802.3af,IEEE 802.3at

Features

Product colour

Grey

Wall mountable

Y

Surge protection

Y

LED indicators

N

Certification

FCC Part 15, Class B EN 55032 Class B (Emissions) EN 55024, EN61000-4-5 Class 5 (6 kV CM/DM) VCCI

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE) voltage

54 V

Output power

60 W

Input voltage

100 - 240 V

Input frequency

50/60 Hz

Input current

2 A

Operational conditions

Operating temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 85 °C

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

140 mm

Depth

170 mm

Height

60 mm

Weight

1.4 kg

No options for this product
.
