USB4 Nvme M.2 SSD Enclosure

Introduction

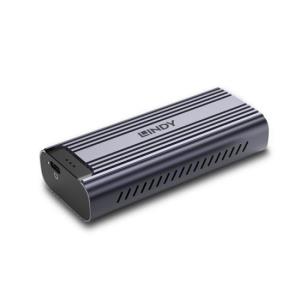

The Lindy USB4 NVMe M.2 SSD Enclosure allows the user to install a PCIe/NVMe based M.2 SSD as an external drive to USB4 or Thunderbolt 3/4 hosts like laptops or PCs. Support for the USB4 standard guarantees extremely fast data transfer rates up to 40Gbps.*

This Lindy enclosure is compatible with PCIe/NVMe based M.2 SSDs with M key or B + M key in 42, 60 and 80mm lengths. The Aluminium housing with Aluminium heatsink ensures excellent heat dissipation and a suitable operating temperature. The tool-free design makes installation very easy.

* Please note that 40Gbps full support is only possible with a USB4, Thunderbolt 3 or 4 host controller.

Storage

Number of storage drives supported

1

Storage drive size

M.2

Supported storage drive interfaces

PCI Express

Installed storage drive type

SSD

Ports & interfaces

USB connectivity

Yes

USB connector type

USB Type-C

Design

Product type

SSD enclosure

Product colour

Grey

Material

Aluminium

Certification

CE, FCC, RoHS & REACH, CP65

Performance

Data transfer rate

40 Gbit/s

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 85%

Weight & dimensions

Width

107 mm

Depth

47 mm

Height

24 mm

Weight

88 g

Cable length

0.15 m

Package width

180 mm

Package depth

105 mm

Package height

30 mm

Package weight

200 g

Packaging content

Screws included

Yes

Screwdriver included

Yes

Manual

Yes
