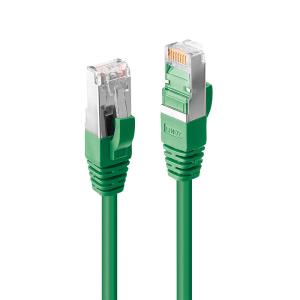

Patch Cable - CAT6a - S/ftp Lszh - 15m - Green

Introduction

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions

Features

Product colour

Green

Cable length

1.5 m

Cable standard

Cat6a

Cable shielding

S/FTP (S-STP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Connector contacts plating

Gold

Connector shielding

Yes

Connector shield material

Aluminium

Jacket material

Low smoke zero halogen (LSZH)

Cable shape

Round

Conductor material

Copper

Connector housing material

Polycarbonate (PC)

Cabling technology

10GBase-T

AWG wire size

27

Frequency

500 MHz

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-20 - 75 °C

Weight & dimensions

Width

11.6 mm

Depth

21.5 mm

Height

8.3 mm

Outer diameter

6 mm

Packaging data

Package type

Polybag

Technical details

Sustainability compliance

Yes

Sustainability certificates

REACH, RoHS

Doesn't contain

Halogen
