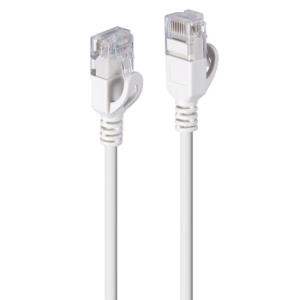

Patch Cable - CAT6a - F/utp Ultra Slim - 3m - Grey

Introduction

Cat.6A U/FTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as an ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.

Features

Product colour

Grey

Cable length

3 m

Cable standard

Cat6a

Cable shielding

U/FTP (STP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Connector contacts plating

Nickel

Connector shielding

Yes

Connector shield material

Aluminium

Jacket material

Polyvinyl chloride (PVC)

Conductor material

Copper

AWG wire size

28

Frequency

500 MHz

Bend radius (min)

6 cm

Operational conditions

Operating temperature (T-T)

-10 - 60 °C

Storage temperature (T-T)

-10 - 40 °C

Weight & dimensions

Width

11 mm

Depth

28 mm

Height

6 mm

Outer diameter

3.6 mm

Packaging data

Package type

Polybag

Technical details

Sustainability compliance

Yes

Sustainability certificates

REACH, RoHS
