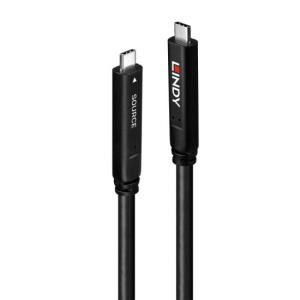

Hybrid Cable USB 3.2 G1- USB-c Male - USB-c Male - 10m - Black With DisplayPort 1.4 2 Lanes

Introduction

The Lindy USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.

The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

Please Note:

When using resolutions above 3840x2160@30Hz, USB data transfer rates reduce to 5Gbps, and resolutions above 3840x2160@60Hz transfer rates reduce further to 480Mbps.

USB devices which only support DP signals over 4 lanes might not be compatible.

Displays must have set USB settings to USB 3.0 in order to receive video via Type C.

Features

USB version

USB 3.2 Gen 1 (3.1 Gen 1)

Connector 1

USB C

Connector 2

USB C

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

AWG wire size

21

Cable jacket material

Polyvinyl chloride (PVC)

Connector shielding

Yes

Connector housing material

Plastic

Product colour

Black

Cable type

Round cable

Plug and Play

Yes

Weight & dimensions

Cable length

10 m

Cable diameter

6.5 mm

Weight

760 g

Packaging data

Package type

Box

Package width

240 mm

Package depth

240 mm

Package height

65 mm

Package weight

900 g

Packaging content

Quantity per pack

1 pc(s)

Operational conditions

Operating temperature (T-T)

-10 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Certificates

Certification

CE, FCC, RoHS & REACH, CP65
