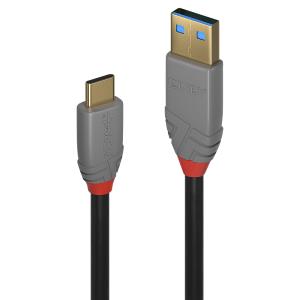

Cable USB 3.2 - USB-a Male - USB-c  Male - 3m - Anthraline With Power Delivery

Cable USB 3.2 - USB-a Male - USB-c Male - 3m - Anthraline With Power Delivery

Part Number:
36919
Language:
NS

£16.59  (Excl VAT)

Introduction

The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Features

Connector 1

USB C

Connector 2

USB A

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

AWG wire size

24/30/32

Connector material

Nickel

Contact material

Phosphor bronze

Connector contacts plating

Gold

Magnetically shielded

Yes

Cable jacket material

Polyvinyl chloride (PVC)

Conductor material

Tinned copper

Connector shielding

Yes

Connector shield material

Aluminium

Connector housing material

Polyvinyl chloride (PVC)

Maximum data transfer rate

10000 Mbit/s

Maximum data transfer rate

10 Gbit/s

Product colour

Black

Cable type

Round cable

Cable colour

Black

Plug and Play

Yes

Weight & dimensions

Cable length

3 m

Cable diameter

4.5 mm

Bend radius (min)

4.5 cm

Connector 1 dimensions (WxDxH)

16 x 47 x 8.8 mm

Connector 2 dimensions (WxDxH)

13 x 41 x 7.75 mm

Packaging data

Package type

Polybag

Packaging content

Quantity per pack

1 pc(s)

Operational conditions

Operating temperature (T-T)

-20 - 80 °C

Storage temperature (T-T)

-25 - 85 °C

Certificates

Compliance certificates

REACH, RoHS, UL

Certification

RoHS, REACH, California Proposition 65 & UL

Logistics data

Harmonized System (HS) code

84733080

Warranty period

2 year(s)
