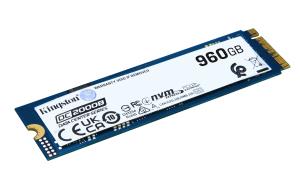

SSD - Dc2000b - 960GB - Pci-e 4.0 X4 Nvme - M.2 2280

Introduction

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a five-year warranty.

PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.

On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.

Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.

Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.

Features

SSD capacity

960 GB

SSD form factor

M.2

Interface

PCI Express 4.0

NVMe

Yes

Memory type

3D TLC

Component for

Server

M.2 SSD size

2280 (22 x 80 mm)

Read speed

7000 MB/s

Write speed

1300 MB/s

Random read (4KB)

540000 IOPS

Random write (4KB)

47000 IOPS

Read latency

70 µs

Write latency

20 µs

PCI Express interface data lanes

x4

S.M.A.R.T. support

Yes

H/W PLP function

Yes

Mean time between failures (MTBF)

2000000 h

Drive writes per day (DWPD)

0.4

TBW rating

700

Power

Power consumption (read)

3.36 W

Power consumption (write)

7.8 W

Average power consumption (read)

3.26 W

Average power consumption (write)

7.36 W

Weight & dimensions

Width

22 mm

Depth

80 mm

Height

8.3 mm

Weight

11 g

Packaging data

Package width

129.5 mm

Package depth

142 mm

Package height

184.2 mm

Package weight

35.77 g

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Non-operating vibration

20 G

Other features

Cooling type

Heatsink

Logistics data

Country of origin

China, Taiwan

Master (outer) case width

135.9 mm

Master (outer) case length

203.2 mm

Master (outer) case height

69.9 mm

Master (outer) case gross weight

292.6 g

Products per master (outer) case

6 pc(s)
