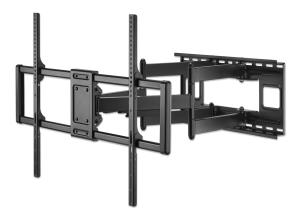

Heavy-Duty Large-Screen Full-Motion TV Wall Mount Holds one 60in to 120in TV up to 12 kg

Heavy-Duty Large-Screen Full-Motion TV Wall Mount Holds one 60in to 120in TV up to 12 kg

Part Number:
462358
Language:
NS

£134.73  (Excl VAT)

Introduction

Ultra Heavy-Duty XXL Articulating TV Wall Bracket – fully adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare
This super-strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15° tilt and +/-60° swivel adjustment for optimized views. Constructed of thick reinforced powder-coated steel up to 3 mm, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120"" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level and +/-5° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. Intuitive quick-release latches let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

Mounting

Minimum screen size

152.4 cm (60")

Maximum weight capacity

120 kg

Maximum screen size

3.05 m (120")

Minimum VESA mount

200 x 200 mm

Maximum VESA mount

900 x 600 mm

Panel mounting interface

200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400,800 x 600,900 x 600

Number of displays supported

1

Mounting type

Wall

Ergonomics

Adjustable depth

Yes

Tilt adjustment

Yes

Tilt angle range

-15 - 5°

Swivelling

Yes

Swivel angle range

-60 - 60°

Cable management

Yes

Built-in spirit level

Yes

Distance to the wall (max)

70.3 cm

Distance to the wall (min)

7.5 cm

Design

Product colour

Black

Housing material

Steel

Technical details

Quantity per pack

1 pc(s)

Packaging content

Manual

Yes

Mounting kit

Yes

Packaging content

Heavy-Duty Large-Screen Full-Motion TV Wall Mount Attachable bubble level Installation hardware with instructions

Weight & dimensions

Width

1010 mm

Depth (max)

70.3 cm

Height

630 mm

Weight

16.1 kg

Packaging data

Package width

1055 mm

Package depth

355 mm

Package height

95 mm

Package weight

16.9 kg

Package type

Box

Logistics data

Master (outer) case width

340 mm

Master (outer) case length

1050 mm

Master (outer) case height

78 mm

Master (outer) case gross weight

18 kg

Products per master (outer) case

1 pc(s)
