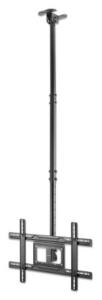

Full-Motion Height-Adjustable TV Ceiling Mount 37in to 80in TV up to 50kg

Full-Motion Height-Adjustable TV Ceiling Mount 37in to 80in TV up to 50kg

Part Number:
462051
Language:
NS

£54.89  (Excl VAT)

Introduction

Ceiling TV Mount - Telescopic TV mount bracket with tilt for sloped and flat ceilings to save wall and floor space
Upgrade viewing perspectives when wall and floor space is limited or low-level installations are impractical. This Manhattan Ceiling TV Mount holds a 37"" to 80"" LCD, LED or plasma display up to 50 kg (110 lbs.). Its powder-coated, heavy-duty steel construction provides a secure and confident overhead installation.

Keep your guests and co-workers informed and entertained
Designed for both residential and business applications, this mount is ideal for conference rooms, lobbies, entrances, meeting spaces, classrooms, hospitality, digital signage, video conferencing, surveillance and more.

Viewable from anywhere in the room
The full-motion mount lets you rotate your display +/-30° around the pole without using tools and can be tilted from +5 to -25° toward your audience for optimum visibility. Such great options keep images, contrast and colors clear, sharp and defined with no glare. Plus, the overhead installation means there's less likelihood that someone or something will block the view.

Adjustable height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling between 707 to 1577 mm (28 to 62 in.).

Suits flat and sloped ceilings
This Manhattan TV mount accommodates both ceiling types: You can adjust the ceiling plate +/- 60° to work with sloped and level (flat) surfaces.

Clean-looking, clutter-free cable management
Internal cable management keeps your cords concealed and organized to give a professional look to the installation.

Mounting

Maximum weight capacity

50 kg

Minimum screen size

94 cm (37")

Number of displays supported

1

Maximum weight capacity (per display)

50 kg

Maximum screen size

2.03 m (80")

Minimum VESA mount

200 x 200 mm

Maximum VESA mount

600 x 400 mm

Panel mounting interface

200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400

Mounting type

Ceiling

Ergonomics

Height adjustment

Yes

Height adjustment range

707 - 1577 mm

Tilt adjustment

Yes

Tilt angle range

-25 - 5°

Swivelling

Yes

Swivel angle range

-30 - 30°

Wheels

No

Cable management

Yes

Easy to adjust

Yes

Design

Product colour

Black

Housing material

Steel

Technical details

Sustainability compliance

Yes

Compliance certificates

RoHS

Packaging content

Manual

Yes

Weight & dimensions

Width

650 mm

Depth (max)

179.2 cm

Height

185 mm

Weight

5.58 kg

Packaging data

Package weight

6.28 kg
