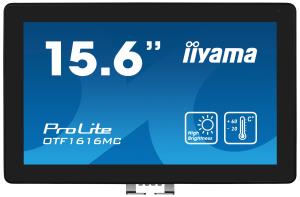

15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for semi-outdoor applications
Built into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20°C up to +60°C.
The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets (OMK5-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.
HIGH-BRIGHTNESS
The display offers a brightness of up to 935 cd/m², so that the content displayed on the screen is clearly visible even in very bright environments.
VA
39.6 cm (15.6")
LCD
1920 x 1080 pixels
1100 cd/m²
Full HD
Yes
Projected capacitive system
10
16:9
25 ms
800:1
178°
178°
16.2 million colours
0.179 x 0.179 mm
345.2 x 194.6 mm
39.5 cm
31.5 - 67.5 kHz
60 Hz
7H
3.5 mm
1
1
No
1
1
Yes
Yes
1
Digital signage flat panel
Indoor
Horizontal/Vertical
Black
Flat
Yes
100 x 100 mm
Universal
Yes
7
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Yes
IP65
60000 h
24 W
1.5 W
0.3 W
E
11 kWh
A to G
398.5 mm
42 mm
246 mm
3 kg
485 mm
150 mm
370 mm
4.62 kg
Yes
AC, DisplayPort, HDMI, USB
-20 - 60 °C
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
