Introduction

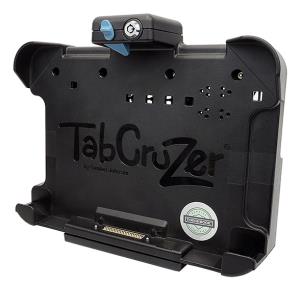

The Toughpad FZ-G1 THIN docking station is the perfect companion to the G1 tablet if you do not require a handstrap for the tablet or connection to an external antenna. This dock features lite port replication to connect peripherals and due to its small footprint, is perfect for conserving cabin space in a smaller vehicle.
Performance
Basic device type
Tablet
Brand compatibility
Panasonic
Compatibility
Toughpad FZ-G1
Product colour
Black
VESA mounting
Yes
Maximum VESA mount
75 x 75 mm
Network
Bluetooth
No
Ports & interfaces
Docking connector type
Panasonic 24-pin
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Audio output
No
HDMI
No
Ethernet LAN (RJ-45) ports
1
Number of antenna connectors
1
VGA (D-Sub) ports quantity
1
DC-in jack
Yes
Power
Power source type
DC
DC output voltage
16
Weight & dimensions
Width
285 mm
Depth
65 mm
Height
237 mm
Weight
1.13 kg
Packaging data
Quantity
1
Packaging content
User guide
Yes
Technical details
Warranty period
3 year(s)
Compliance certificates
C-TICK, CE, Federal Communications Commission (FCC), RoHS, UKCA
