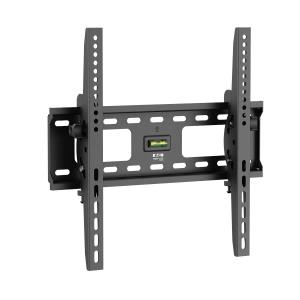

TRIPP LITE Tilt Wall Mount for 26" to 55" TVs and Monitors (DWT2655XP)

Introduction

The VESA-compliant DWT2655XP Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 26 to 55 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles.

Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns:  200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm

Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 26 to 55 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included

Convenient One-Touch Adjustment
-10° to +10° tilt capability provides comfortable viewing from multiple angles
Improves viewing angles in applications where audience is below the display

Durable Metal Construction
Supports up to 165 lbs (74.8 kgs).
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish

VESA Compliance
Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm

Mounting

Minimum screen size

66 cm (26")

Maximum weight capacity

75 kg

Maximum screen size

139.7 cm (55")

Minimum VESA mount

200 x 100 mm

Maximum VESA mount

400 x 400 mm

Panel mounting interface

200 x 100,200 x 200,400 x 200,400 x 400

Mounting type

Wall

Ergonomics

Tilt angle range

-10 - 10°

Design

Product colour

Black

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

459.7 mm

Depth

63.5 mm

Height

439.9 mm

Weight

2.85 kg

Packaging data

Package width

157.5 mm

Package depth

487.7 mm

Package height

76.2 mm

Package weight

3.05 kg

Logistics data

Master (outer) case width

436.9 mm

Master (outer) case length

502.9 mm

Master (outer) case height

190.5 mm

Master (outer) case gross weight

18.5 kg

Products per master (outer) case

6 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332183597

Harmonized System (HS) code

8302.50.0000

Other features

Country of origin

China
