Introduction

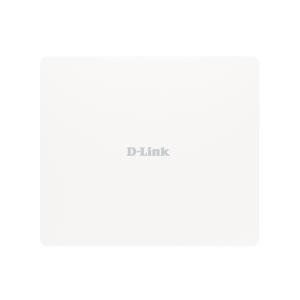

Nuclias Connect AX3000
Outdoor Access Point
The DAP-X3060OU delivers high performance Wi-Fi 6 speeds, enhanced capacity, interference-free coverage, and simple management via Nuclias Connect
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
2402 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
MIMO
Yes
MIMO type
Multi User MIMO
Fast roaming
Yes
Security
Security algorithms
64-bit WEP, 128-bit WEP, SSID, WEP, WPA, WPA2, WPA3
MAC address filtering
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power over Ethernet (PoE)
Yes
Power consumption (max)
16.7 W
Design
Placement
Wall
Product colour
White
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
7.9 dBi
Weight & dimensions
Width
277 mm
Depth
50 mm
Height
240 mm
Weight
1.16 kg
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-30 - 65 °C
Storage relative humidity (H-H)
5 - 95%
