CISCO

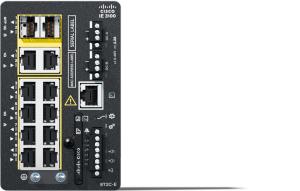

Ie3100 W/8ge Copper 2ge Combo Fixed Sys Network Essentials

Ie3100 W/8ge Copper 2ge Combo Fixed Sys Network Essentials

Part Number:
IE-3100-8T2C-E
Language:
IN

£1,379.82  (Excl VAT)

Introduction

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.

These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.

Management features

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Compatible memory cards

SD

Power connector

DC-in jack

Network

Networking standards

IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z

10G support

No

Link aggregation

Yes

Spanning tree protocol

Yes

Number of VLANs

256

Data transmission

MAC address table

8000 entries

Security

DHCP features

DHCP server, DHCP snooping

IGMP snooping

Yes

IGMP entries

512

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Stackable

No

Product colour

Black

DIN rail mounting

Yes

Performance

Memory type

DRAM

Internal memory

4000 MB

Power

Power source

DC

Power supply included

Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

76.2 mm

Depth

110 mm

Height

127 mm

Weight

860 g
