Aironet 1815i Series With Mobility Express

Introduction

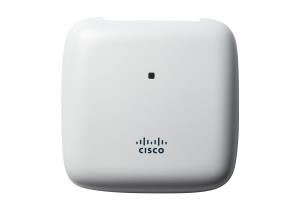

The Cisco Aironet 1815i delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE's 802.11ac Wave 2 (Figure 1). It also meets the growing requirements of wireless networks by delivering a better user experience.

The 1815i extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

By adhering to the 802.11ac Wave 2 standard, the 1815i offers a data rate of up to 867 Mbps on the 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

Due to its convenience, in recent years corporate users have increasingly preferred wireless access as the form of network connectivity. Along with this shift, there is an expectation that wireless should not slow down users' day-to-day work, but should enable a high-performance experience while allowing users to move freely. The 1815i delivers industry-leading performance for highly secure and reliable wireless connections and provides a robust mobility end-user experience. Table 1 lists the features and benefits of the 1815i.

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

1000 Mbit/s

Maximum data transfer rate (5 GHz)

867 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.11r,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u

Channels quantity

29 channels

Wi-Fi Multimedia (WMM)/(WME)

Y

VLAN support

Y

Transmitting power

4 dBmW

Security

Security algorithms

802.1x RADIUS,AES,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,PEAP,WPA,WPA2

Remote Authentication Dial-In User Service (RADIUS)

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE)

Y

Design

Placement

Table

Product colour

White

LED indicators

Y

Certification

UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 /-17 (Europe) EN 50385

Internal

N

Antenna

Antenna type

Internal

Antenna gain level (max)

4 dBi

Performance

Built-in processor

Y

Flash memory

256 MB

Internal memory

1024 MB

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-30 - 70 °C

Storage relative humidity (H-H)

10 - 90%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 4500 m

Weight & dimensions

Width

150.8 mm

Depth

150.8 mm

Height

33 mm

Weight

400 g

Packaging data

Bundled software

Mobility Express
