P3225-lv Mk Il Fixed Dome Network Camera

Introduction

Image usability

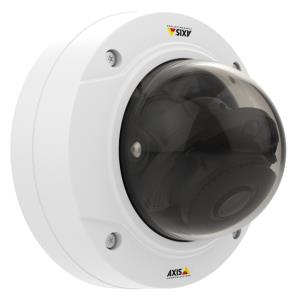

AXIS P3225-LV Mk II Network Camera is a streamlined fixed dome providing HDTV 1080p video. The camera is ideal for indoor video surveillance in retail, banking, hotels and other service industries.

Equipped with WDR – Forensic Capture to handle scenes with strong light variations, Lightfinder for exceptional light sensitivity, and P-Iris control for optimal clarity and depth of field, this versatile camera provides outstanding video quality in both strong and poor light conditions. Day and night functionality, together with Axis’ built-in IR solution, OptimizedIR, ensures an evenly illuminated view and excellent video quality even in complete darkness.

Effortless and versatile installation

AXIS P3225-LV Mk II is dust-resistant and IK08 impact-resistant, and has been designed for effortless and reliable installation. The camera features a varifocal lens and remote zoom and focus capabilities, which eliminates the need for hands-on fine tuning. AXIS P3225-LV Mk II can be mounted flush to a wall, ceiling or on junction boxes, and optional kits are available for recessed mounting or on pendants. Further, the camera supports versatile cable management with optional adapters for connecting to various conduits. The camera casing is easily repaintable in any desired color to blend into the environment.

Efficient use with Zipstream

AXIS P3225-LV Mk II provides multiple, individually configurable H.264 and Motion JPEG video streams. With a built-in memory card slot, the camera enables local storage of video. In addition, Axis’ Zipstream technology significantly lowers bandwidth and storage requirements without costly and complicated integration.

Performance

Type

IP security camera

Placement supported

Indoor

Connectivity technology

Wired

PTZ control

Y

Wide Dynamic Range (WDR)

Y

Day/night mode

Y

Infrared (IR) cut-off filter

Y

Number of languages

11

Languages support

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian

Design

Form factor

Dome

Product colour

White

Protection features

Shock resistant, Vibration proof

International Protection (IP) code

IP52

Camera

Angle of rotation

190°

Viewing angle, horizontal

92°

Viewing angle, vertical

50°

Tilt angle range

-5 - 75°

Pan range

-180 - 180°

Camera shutter speed

1 - 1/66500 s

Image sensor

Optical sensor size

25.4 / 3 mm (1 / 3")

Progressive scan

Y

Sensor type

CMOS

Lens system

Zoom capability

Y

Maximum aperture number

1.4

Focal length range

3 - 10.5 mm

Night vision

Night vision

Y

Night vision distance

30 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

1920 x 1080 pixels

Video compression formats

AVC,H.264,M-JPEG,MPEG4

Supported graphics resolutions

160 x 90,640 x 360,960 x 540,1024 x 576 (WSVGA),1280 x 720 (HD 720),1600 x 900,1920 x 1080 (HD 1080)

Supported video modes

360p,576p,960p,1080p

Frame rate

60 fps

Automatic gain control

Y

Full HD

Y

Image quality adjustment

Brightness, Colour depth, Contrast

Privacy masking

Y

Text caption overlay

Y

Network

Ethernet LAN

Y

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af,IEEE 802.3at

Supported network protocols

IPv4/v6, HTTP , HTTPS , SSL/TLS , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP , SNMP v1/v2c/v3(MIB - II), DNS, DynDNS, NTP , RTSP , RTP , SFTP , TCP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH

Cabling technology

10/100Base-T(X)

Quality of Service (QoS) support

Y

Storage

Card reader integrated

Y

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

256 MB

Internal memory

512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Interface

RJ-45

Security

Video motion detection

Y

Active tampering alarm

Y

IP address filtering

Y

Security algorithms

HTTPS,SNMP,SSL/TLS

HTTPS encryption

Y

Alert notification type

E-mail

Management features

Remotely operated

Y

Power

Power source type

PoE

Power consumption (typical)

6.1 W

Power consumption (max)

10.2 W

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 85%

Weight & dimensions

Height

101 mm

Diameter

14.9 cm

Weight

550 g

Packaging content

Number of cameras

1

Mounting brackets included

Y

Technical details

Removable IR-cut filter

Y
