Introduction

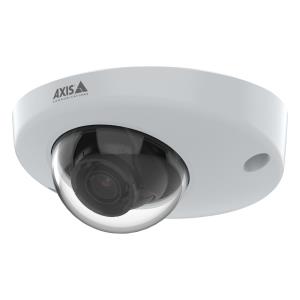

This compact and discreet 2 MP onboard camera complies with rolling stock standards such as EN50155 and EN45545. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a vehicle. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Y
PTZ modes
Digital PTZ
Wide Dynamic Range (WDR)
Y
Built-in processor
Y
Number of languages
19
Languages support
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Certification
CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE
Design
Form factor
Dome
Mounting type
Wall
Product colour
White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IP66, IP67
IK code
IK10
Camera
Camera pan control
Y
Camera tilt control
Y
Minimum illumination
0.04 lx
Angle of rotation
175°
Lens viewing angle, horizontal
88°
Lens viewing angle, vertical
47°
Tilt angle range
15 - 90°
Pan range
-30 - 30°
Camera pixel size
2.8 µm
Image sensor
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Sensor type
CMOS
Lens system
Zoom capability
Y
Lens diameter
3.6 mm
Maximum aperture number
2
Night vision
Night vision
N
Video
Maximum resolution
1920 x 1080 pixels
Total megapixels
2 MP
Video compression formats
H.264, H.265, M-JPEG
Video recording
Y
Frame rate
30 fps
Video streaming
Y
Noise reduction
Y
Noise reduction technology
2D noise reduction, 3D noise reduction
Privacy masking
Y
Network
Ethernet LAN
Y
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Wi-Fi
N
Bluetooth
N
Quality of Service (QoS) support
Y
Storage
Built-in HDD
N
Card reader integrated
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Y
Video motion detection
Y
Active tampering alarm
Y
IP address filtering
Y
HTTPS encryption
Y
Pixel counter
Y
Digest authentication
Y
Network access storage (NAS)
Y
Power
Power source type
PoE
Power consumption (max)
3.8 W
Power consumption (Power over Ethernet (PoE))
2.2 W
Operational conditions
Operating temperature (T-T)
-30 - 55 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Weight & dimensions
Height
50 mm
Diameter
11 cm
Weight
241 g
Packaging content
Number of cameras
1
Manual
Y
Packaging content
Windows decoder 1-user license, lens tool
