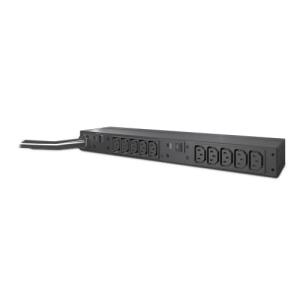

Introduction
- Input: 200V, 208V, 230V
- Input Connections: NEMA L6-30P
- Cord Length: 12 feet ( 3.66 meters )
- Output: 208V
Design
Rack capacity
1U
Product colour
Grey
Weight & dimensions
Width
445 mm
Depth
77 mm
Height
44 mm
Dimensions (WxDxH)
445 x 77 x 44 mm
Weight
2.55 kg
Power
Nominal input voltage
200; 208; 230 V
Output voltage
208 V
AC input frequency
60 Hz
Nominal output voltage
208 V
Maximum total current draw per phase
24 A
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
RoHS, REACH, WEEE
Certification
cUL listed; PSE; UL listed
Logistics data
Total carbon footprint (kg of CO2e)
65.42
Country of origin
India
Customs product code (TARIC)
8544429090
Technical details
Sustainable packaging
No
Packaging recycled materials
Recycled cardboard
Halogen free
No
Ports & interfaces
Input connection type
NEMA L6-30P
Features
Cable length
3.66 m
Operational conditions
Operating temperature (T-T)
-15 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
