Introduction

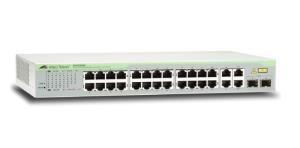

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.
Management features
Switch type
Managed
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
MIB support
RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
28
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
24
Gigabit Ethernet (copper) ports quantity
2
Combo SFP ports quantity
2
Network
Networking standards
IEEE 802.11d,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
N
Port mirroring
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
Virtual LAN features
Tagged VLAN,Port-based VLAN
Data transmission
Switching capacity
12.8 Gbit/s
MAC address table
8000 entries
Number of queues
4
Jumbo frames support
Y
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Security
DHCP features
DHCP client
Access Control List (ACL)
Y
IGMP snooping
Y
MAC address filtering
Y
Authentication
MAC-based authentication
Multicast features
Multicast support
Y
Number of multicast groups filtered
256
Design
Rack mounting
Y
Form factor
1U
Product colour
Grey
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
8.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
330 mm
Depth
18 mm
Height
44 mm
Weight
2.2 kg
Packaging data
Cables included
AC
